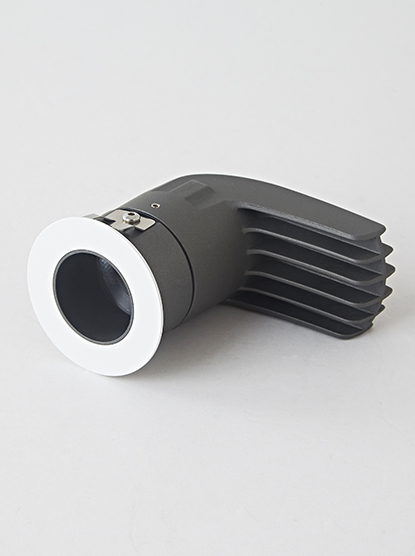

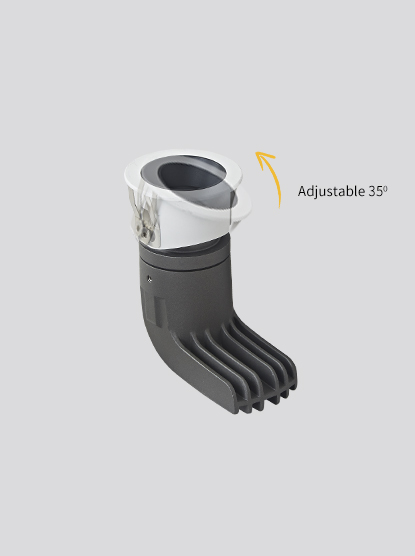

QL Series
天花灯
规格
|
MODEL |
CODE |
LED POWER |
BEAM ANGLE |
CRI |
CCT |
SURFACE COLOR |
SIZE(W×L×H） |
CUTOUT |
INPUT |
 |

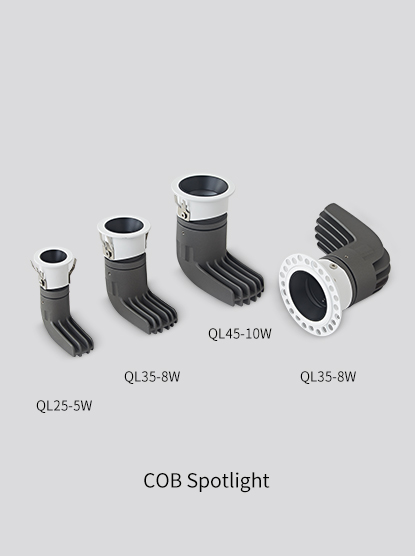

QL25 | 5W | 15°/24°/36° | 95 | 2700K/3000K/4000K/6000K | white+black/white | Φ29*H62 | Φ25 | AC100-240VAC,50/60Hz |
 |
QL35 |
8W |
15°/24°/36° |
95 |
2700K/3000K/4000K/6000K |
white+black/white |
Φ43*H67 |
Φ35 |
AC100-240VAC,50/60Hz |
 |
QL45 |
10W |
15°/24°/36° |
95 |
2700K/3000K/4000K/6000K |
white+black/white |
Φ52*H77 |
Φ45 |
AC100-240VAC,50/60Hz |
 |
QL35W |
8W |
15°/24°/36° |
95 |
2700K/3000K/4000K/6000K |
white+black/white |
Φ55*H70 |
Φ40 |
AC100-240VAC,50/60Hz |

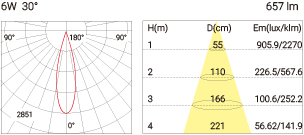

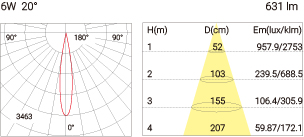

| SIZE（mm） | PHOTOMETRIC | ||
|
|
  |
|
|

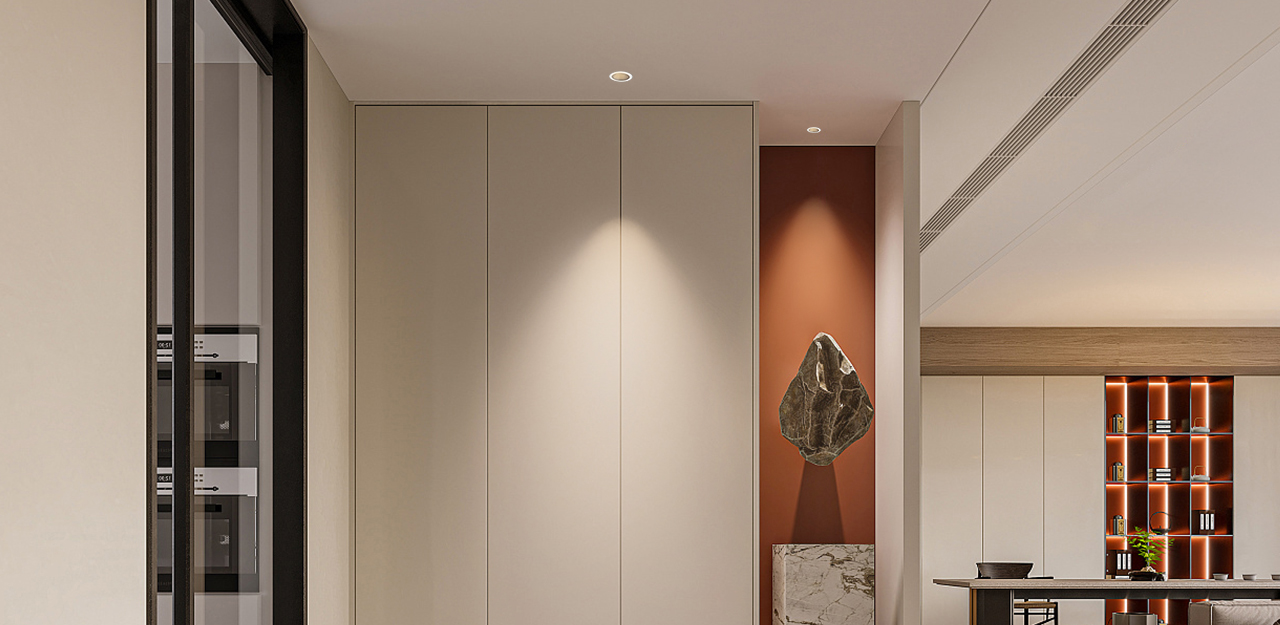

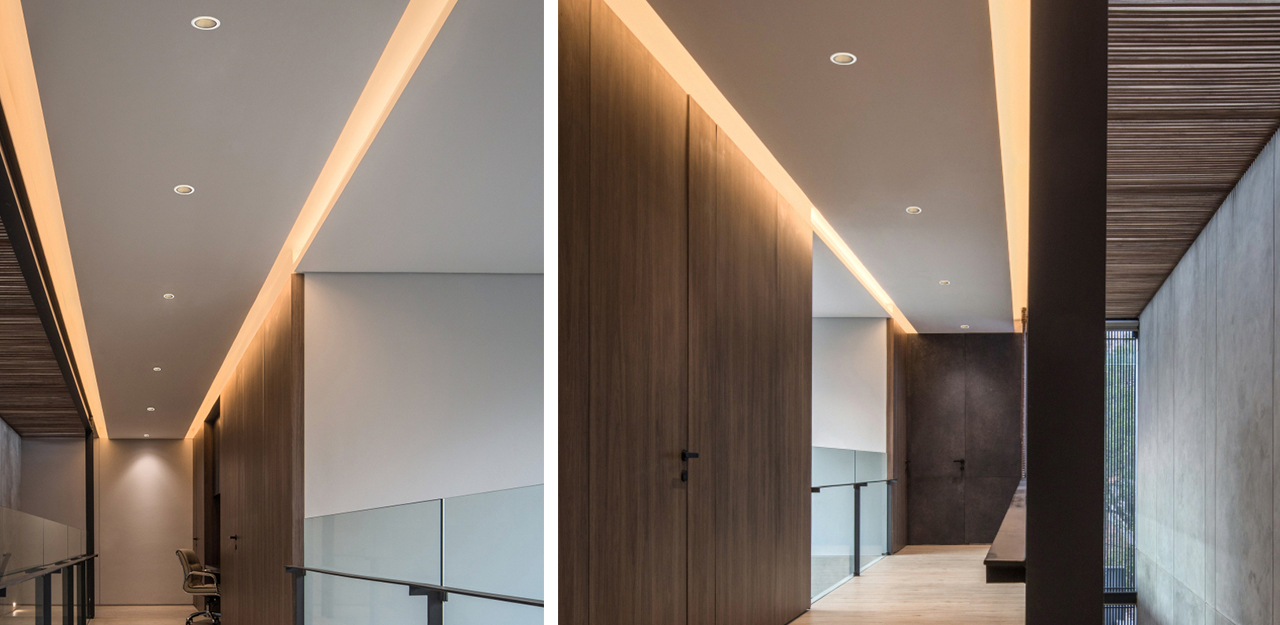

APPLICATION
|
MODEL |
CODE |
LED POWER |
BEAM ANGLE |
CRI |
CCT |
SURFACE COLOR |
SIZE(W×L×H） |
CUTOUT |
INPUT |
|
|
QL25 | 5W | 15°/24°/36° | 95 | 2700K/3000K/4000K/6000K | white+black/white | Φ29*H62 | Φ25 | AC100-240VAC,50/60Hz |
|
|
QL35 |
8W |
15°/24°/36° |
95 |
2700K/3000K/4000K/6000K |
white+black/white |
Φ43*H67 |
Φ35 |
AC100-240VAC,50/60Hz |
|
|
QL45 |
10W |
15°/24°/36° |
95 |
2700K/3000K/4000K/6000K |
white+black/white |
Φ52*H77 |
Φ45 |
AC100-240VAC,50/60Hz |
|
|
QL35W |
8W |
15°/24°/36° |
95 |
2700K/3000K/4000K/6000K |
white+black/white |
Φ55*H70 |
Φ40 |
AC100-240VAC,50/60Hz |
| SIZE（mm） | PHOTOMETRIC | ||
|
|
|
|
|
APPLICATION
