THQ series

天花灯

下载
规格


MODEL

CODE

LED POWER

BEAM ANGLE

CRI

CCT

SURFACE COLOR

SIZE(W×L×H)

CUTOUT

INPUT
THQ50 6W 15°/24°/36° 90 3000K/4000K/6000K white/black Φ60*H73 Φ50 AC100-240VAC,50/60Hz











THQ75 10W 15°/24°/36° 90 3000K/4000K/6000K white/black Φ85*H103 Φ75 AC100-240VAC,50/60Hz










SIZE



PHOTOMETRIC



APPLICATION



CODE
THQ50

THQ75

LED POWER
6W

10W

SIZE(W×L×H)
Φ60*H73

Φ85*H103

CUTOUT
Φ50

Φ75

BEAM ANGLE
15°/24°/36°

CRI
90

CCT
3000K/4000K/6000K

SURFACE COLOR
white/black

INPUT
 AC100-240VAC,50/60Hz

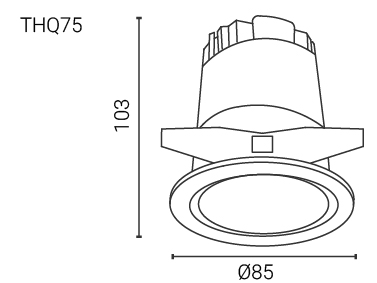

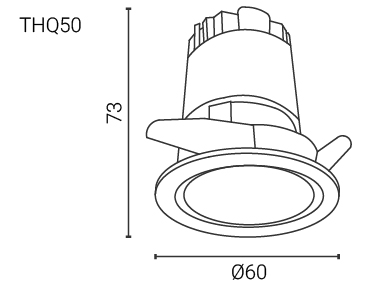

SIZE(mm)





PHOTOMETRIC

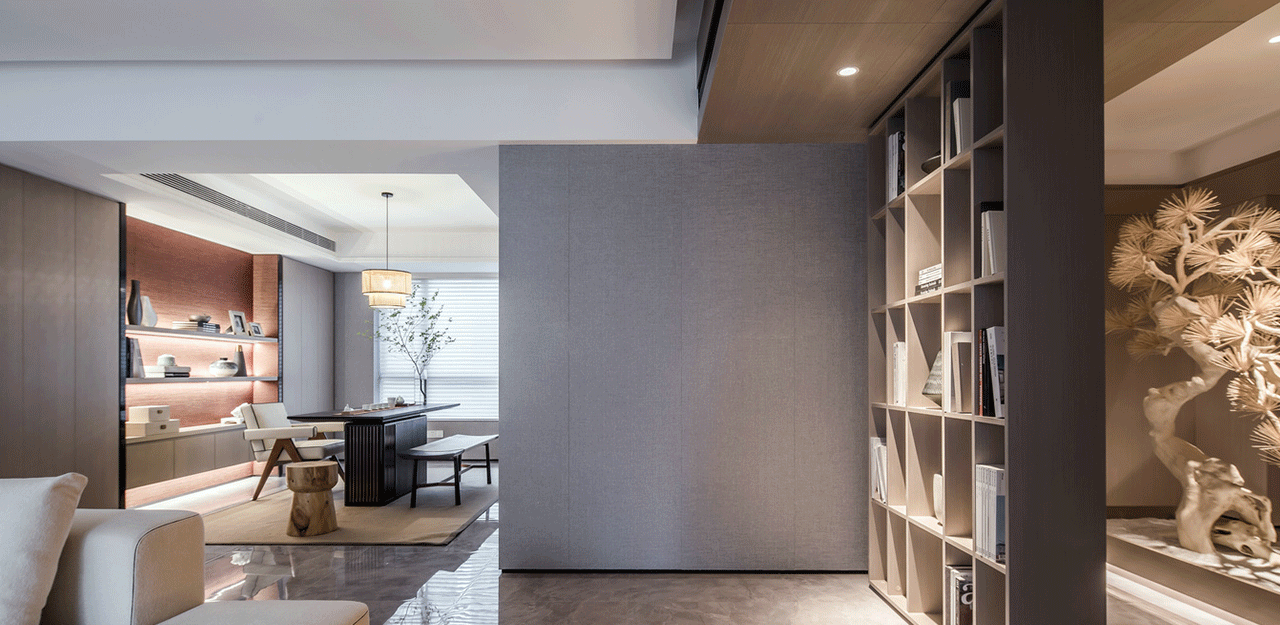

APPLICATION
