THE series
天花灯
规格
|
MODEL |
CODE |
LED POWER |
BEAM ANGLE |
CRI |
CCT |
SURFACE COLOR |
SIZE(W×L×H） |
CUTOUT |
INPUT |
 |
THE55 | 6W | 15°/24°/36° | 90 | 3000K/4000K/6000K | white/black/silver | Φ60*H73 | Φ55 | AC100-240VAC,50/60Hz |
|
|
|
|
|
|
|
|
|
|
|
 |
THE75 | 10W | 15°/24°/36° | 90 | 3000K/4000K/6000K | white/black/silver | Φ84*H180 | Φ75 | AC100-240VAC,50/60Hz |
|
|
|
|
|
|
|
|
|
|
|
|

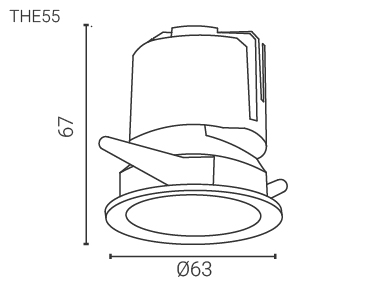

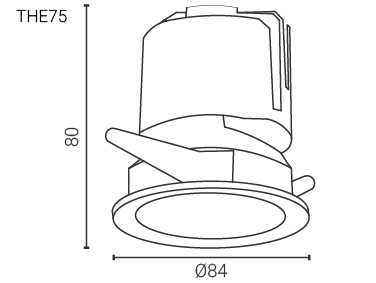

SIZE（mm） |
|
|
|
|
|
PHOTOMETRIC |
|
|
|
|
|
|
CODE
|
THE55
|
THE75
|
|
LED POWER
|
7W
|
10W
|
|
SIZE(W×L×H）
|
Φ60*H73
|
Φ84*H180
|
|
CUTOUT
|
Φ55
|
Φ75
|
|
BEAM ANGLE
|
15°/24°/36°
|
|
|
CRI
|
90
|
|
|
CCT
|
3000K/4000K/6000K
|
|
|
SURFACE COLOR
|
white/black/silver
|
|
|
INPUT
|
AC100-240VAC,50/60Hz
|
|
| SIZE（mm） |
|
|
|
|
| PHOTOMETRIC |
|
|
APPLICATION
