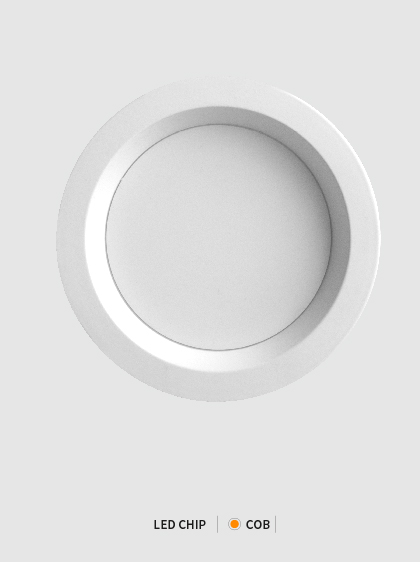

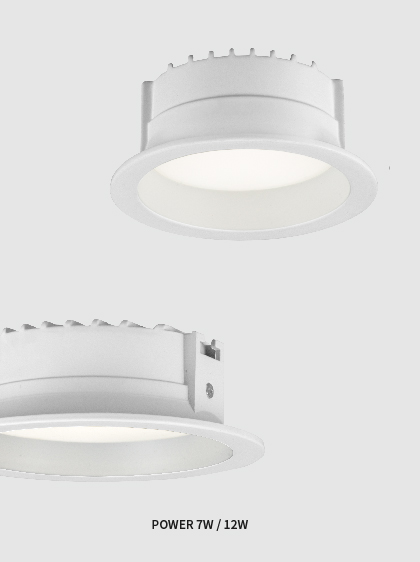

TDM series
Ceiling light
规格
|
MODEL |
CODE |
LED POWER |
BEAM ANGLE |
CRI |
CCT |
SURFACE COLOR |
SIZE(W×L×H） |
OUTPUT |
INPUT |
 |
TDM25 | 7W | 100° | 90 | 3000K/4000K/6000K | white/black/silver | Φ90*H40 | Φ75 | AC100-240VAC,50/60Hz |
|
|
|
|
|
|
|
|
|
|
|
 |
TDM35 | 12W | 100° | 90 | 3000K/4000K/6000K | white/black/silver | Φ120*H40 | Φ100 | AC100-240VAC,50/60Hz |
|
|
|
|
|
|
|
|
|
|
|
|
|

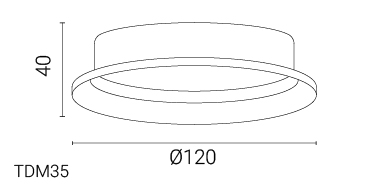

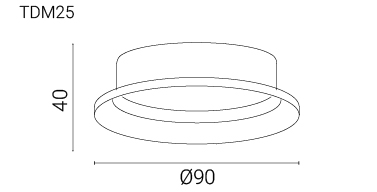

SIZE（mm） |
|
|
|
  |
|

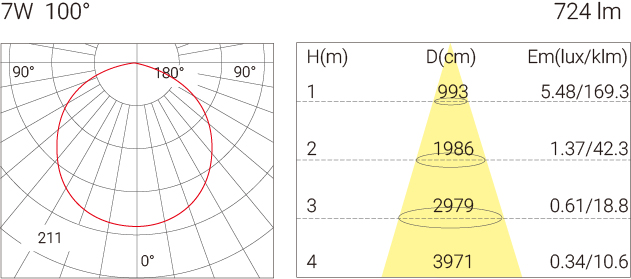

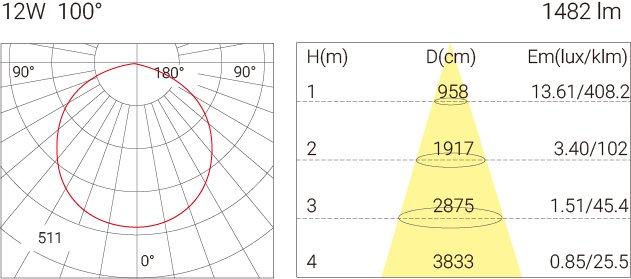

| PHOTOMETRIC |
|
|

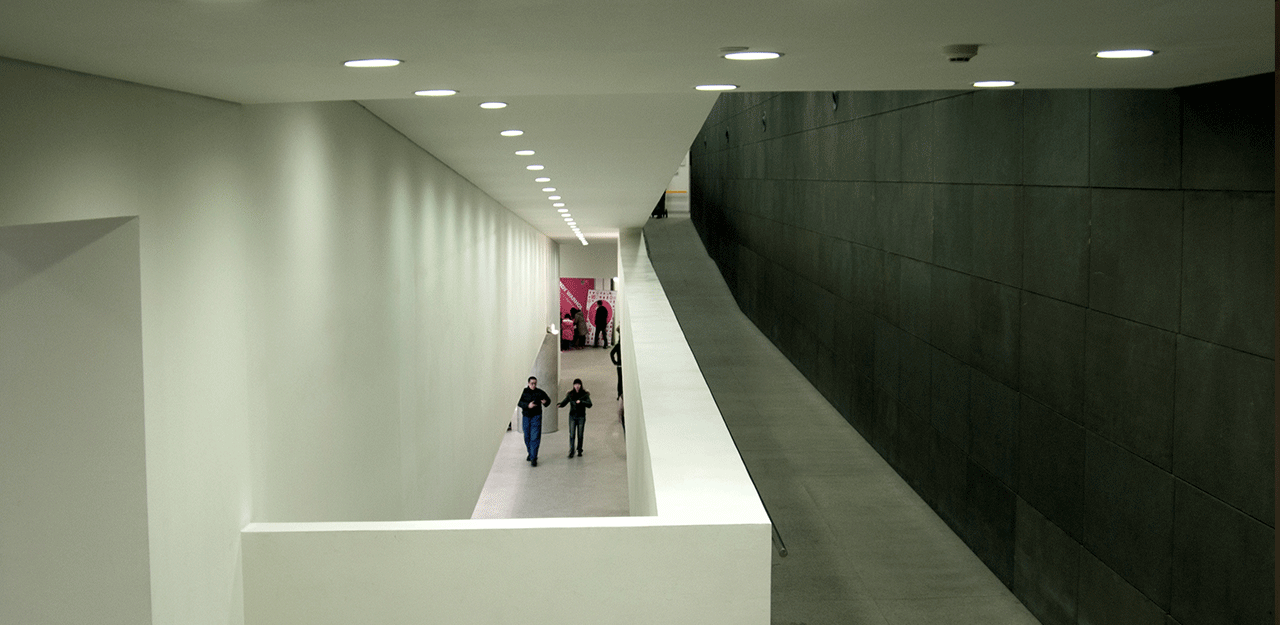

APPLICATION
|
|
|
|
CODE
|
TDM25
|
TDM35
|
|
LED POWER
|
7W
|
12W
|
|
SIZE(W×L×H）
|
Φ90*H40
|
Φ120*H40
|
|
CUTOUT
|
Φ75
|
Φ100
|
|
BEAM ANGLE
|
100°
|
|
|
CRI
|
90
|
|
|
CCT
|
3000K/4000K/6000K
|
|
|
SURFACE COLOR
|
white/black/silver
|
|
|
INPUT
|
AC100-240VAC,50/60Hz
|
|
|

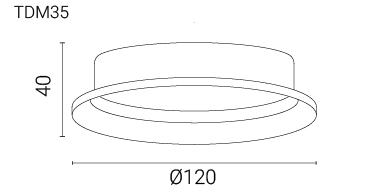

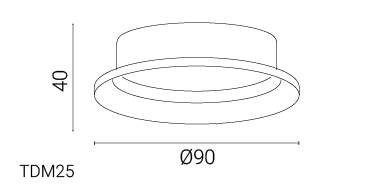

SIZE（mm） |
|
  |
|
|
PHOTOMETRIC
|
|
|
|
|
|
|
APPLICATION
